Curvilinear grids: GDAL’s geolocation-array transformer
Many satellite swaths and ocean model grids have no geotransform. Each cell’s position is stored instead, in two 2D arrays of longitude and latitude (CF coordinates, in netCDF terms). Going from a cell to its position is a lookup. A warp needs the other direction, from a position to the cell that holds it, and for a curved, sheared grid there is no formula for that: it is a search. This page explains how GDAL does the search, how wxylib ports it, and how the two are compared.
The code is crates/wxy-warp/src/geoloc.rs in wxylib/core. The GDAL code it ports is alg/gdalgeoloc.cpp (GDAL 3.12).
Forward: cell to position
GDAL treats neighbouring array points as the corners of a quadrilateral and interpolates bilinearly inside it (PixelLineToXY). Off the edge of the arrays it extends the nearest quadrilateral. Where the array values sit is a convention:
PIXEL_CENTER(what GDAL’s netCDF driver sets for CF coordinates): array point(i, j)is the centre of cell(i, j), at pixel coordinates(i + 0.5, j + 0.5);TOP_LEFT_CORNER: the arrays have one more row and column than the grid and hold the cell corners, at whole pixel coordinates.
Inverse: position to cell
The inverse has two stages.
The backmap (GenerateBackMap), built once. It is a regular grid in the arrays’ CRS that stores, for each of its nodes, the source pixel position found there. Its spacing is chosen so that it has about 1.3 times as many nodes as the source has cells (sqrt(area / (nx * ny * 1.3))). GDAL fills it by walking the source in steps of 1/1.3 pixel and transforming each sample forward:
- if a backmap node falls inside a quadrilateral next to the sample, the node gets that quadrilateral’s exact inverse position (below), and is final;
- otherwise the sample’s own pixel position is spread over the four surrounding nodes with bilinear weights, and kept at a node only while the node’s averaged position still lands within 2 backmap cells of the sample;
- after the walk, the weights are divided out, empty nodes are filled from their neighbours (GDAL’s fill-nodata, up to 3 nodes away, one smoothing pass), and short gaps along each row (2 pixels or less) are bridged.
The backmap is stored as float32, as GDAL stores it.
The refinement, for each position transformed. GDAL interpolates the backmap bilinearly to get an estimate of the source position, then searches the quadrilaterals around that estimate in growing square rings, up to 3 cells out (5 near the poles), for one that contains the point (boundary included). In that quadrilateral it solves the bilinear equations exactly for the point’s fractional position (GDALInverseBilinearInterpolation). If no quadrilateral holds the point, the transform fails for that point, which the warper treats as outside the source.
So the backmap only has to be close: the refinement makes the answer exact within the quadrilateral. The backmap’s details still matter, because they decide which quadrilateral the search starts in, and so which one it finds first where the grid folds over itself or the point sits on a shared edge.
The antimeridian
When the arrays are geographic and all longitudes are within -180 to 180, GDAL interpolates longitude across the antimeridian rather than through zero: a neighbour more than 170 degrees away on the other side is shifted by 360 before interpolating, and the result shifted back. A quadrilateral whose corners straddle the antimeridian is tested at both -180 and +180, and the backmap walk does the same for nodes past 180.
Warping with it
To the warper the geolocation transformer is one more transformer between source pixels and the arrays’ CRS, chained with the CRS transform to the target and wrapped in the approximate transformer as usual (see how the warper works). The chunk plan, source windows and kernels are unchanged.
How wxylib does it
| GDAL | wxylib (geoloc.rs) |
|---|---|
GDALGeoLocTransformInfo |
GeoLoc |
LoadGeolocFinish (extent of the arrays) |
GeoLoc::load_finish |
PixelLineToXY |
GeoLoc::pixel_line_to_xy, pixel_line_to_xy_i |
GenerateBackMap |
GeoLoc::generate_backmap, backmap_point |
| fill-nodata pass on the backmap | fill_nodata, multi_filter |
| the backward transform (backmap, then ring search) | GeoLoc::inverse |
GDALInverseBilinearInterpolation |
inverse_bilinear |
OGRLinearRing contains and touches tests |
Ring::holds |
| forward transform | GeoLoc::forward |
It follows GDAL’s arithmetic order and its block order (256 x 256 blocks, rows of blocks first), since the order in which samples reach the backmap decides which value a node keeps.
wxy-zarr reads CF 2D longitude and latitude coordinates and gives them to the warper as a curvilinear mapping. Cell centres use PIXEL_CENTER, as GDAL does. With 2D CF bounds (wxy warp --bounds) the cell corners are used instead, through TOP_LEFT_CORNER.
Only GDAL’s in-memory backmap and its default options are ported: oversampling 1.3, no quadtree, no swapped axes.
How the match is tested
wxylib/fixtures curvilinear/, made by scripts/make_curvilinear_fixtures.py: a source GeoTIFF with no geotransform, wrapped in a VRT whose GEOLOCATION metadata points at the longitude and latitude arrays, warped by GDAL through rasterio. The same arrays are written raw for wxylib. Six cases:
- a curved, sheared swath over south-eastern Australia to lon/lat, to lon/lat three times coarser, and to polar stereographic;
- the same swath placed by its cell corners (
TOP_LEFT_CORNER), to lon/lat and to polar stereographic; - a ring around the south pole (60 to 85 degrees south, every longitude, so across the antimeridian) to polar stereographic.

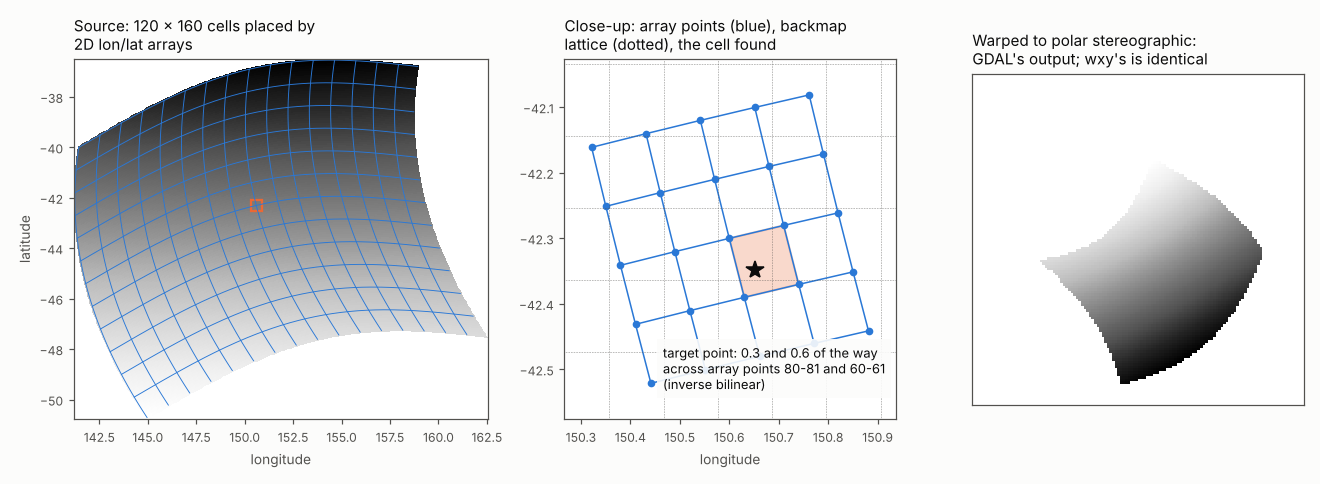

cargo test -p wxy-warp --test curvilinear warps each with nearest, bilinear and cubic and requires every cell to equal GDAL’s: 18 of 18 identical. The figure is made by geoloc-figure.py from the fixture arrays and GDAL’s output for the swath to polar stereographic.
